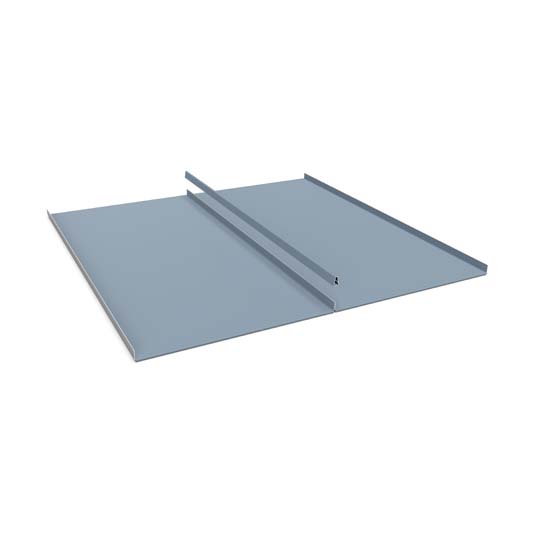

TEE PANEL
SNAP LOCK BATTEN PANEL
The Tee Panel is ideal for use in roofing, mansard and fascia applications. Tee panel is designed to be installed over a solid substrate with a minimum 3:12 roof pitch. The panel is excellent for radius and tapered conditions.
Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)
Available Widths
12” – 20”
Panel Options
Striations (Recommended)
Stress Ribs
Curved/Radius
Flat (Not Recommended)
Substrate Requirements
Can be installed over Solid Substrate
Minimum Roof Pitch
3:12
Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
Panel Performance
UL 580 Class 90 (Uplift),
UL 790 (Class A Fire Rating)
UL 2218 (Impact Resistant)
ASTM 1592 (Uplift) Aluminum, Galvalume
Can be engineered to current ASCE 7 design standard
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
