MRS 3000 – 3” Mechanical Lock

STRUCTURAL STANDING SEAM W/ BATTEN

The System 3000 is a structural metal roof panel with a 3” mechanical seam. This metal roof panel has excellent structural spanning capabilities and can meet high wind loads. Designed with a 3” tall seam having a batten cap, the panel will perform well in low slope roof conditions and is removable.

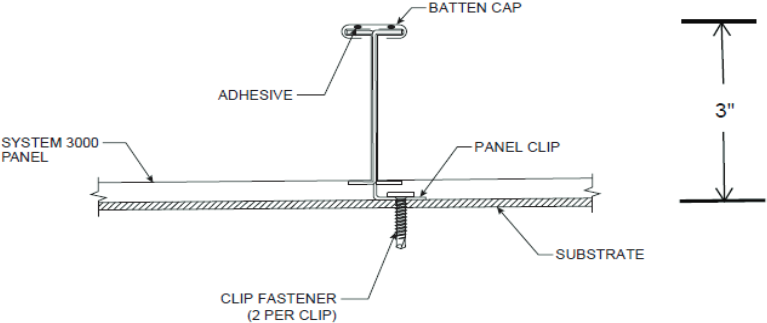

S3000 roof panel

Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)

Available Widths
12” – 18”

Panel Options

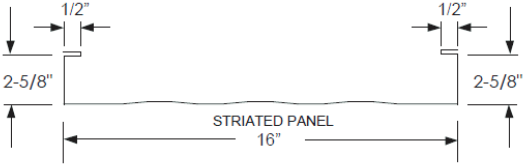

Striations (Recommended)
Flat
* Factory applied Seam Sealant

Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.

Minimum Roof Pitch
1/2:12

Underlayment
Ice & Water Shield (recommended) or Synthetic Underlayment.

Finish
Kynar 500 (Fluoropolymer PVDF Coating)

** Mechanical Seamer Required. For seamer rental please contact am MRS representative

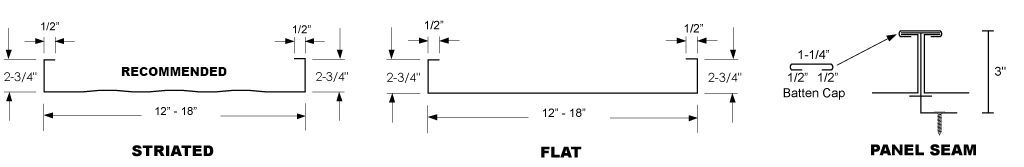

STRUCTURAL STANDING SEAM W/ BATTEN profiles

Architectural Color Chart (PDF)

Color Gallery

Weathertight Warranties

20 Year NDL Weathertight Warranty (PDF)

Standard 20 Year Weathertight Warranty (PDF)

Finish Warranties

35 Year Fluropon 70% PVDF Finish Warranty (PDF)

Coastal Finish Warranty (PDF)

Material Warranty

Galvalume Substrate Warranty (PDF)

Galvalume Plus Substrate Warranty (PDF)

Aluminum Substrate Warranty (PDF)

Panel Performance
UL 580 Class 90 (Uplift),
UL 790 (Class A Fire Rating)
UL 2218 (Impact Resistant)

ASTM 1592 (Uplift) Aluminum, Galvalume
ASTM 1646 (Water Penetration)
ASTM 1680 (Air Infiltration)
ASTM 2140 (Static Water Penetration)

Can be engineered to current ASCE 7 design standard

Energy Star

All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …

LEED

Our product can qualify for the following LEED Credits

SS Credit 7.2 Heat Island Effect: Roof

MR Credit 4.1 Recycled Content

MR Credit 5.1 Regional Materials

Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
