Tee Panel – 1” Snap Lock

SNAP LOCK BATTEN PANEL

The Tee Panel is ideal for use in roofing, mansard and fascia applications. Tee panel is designed to be installed over a solid substrate with a minimum 3:12 roof pitch. The panel is excellent for radius and tapered conditions.

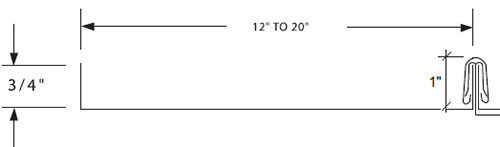

Tee Panel

Available Materials
Galvalume (22, 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)

Available Widths
12” – 20”

Panel Options
Striations (Recommended)
Stress Ribs
Curved/Radius
Flat (Not Recommended)

Substrate Requirements
Can be installed over Solid Substrate

Minimum Roof Pitch
3:12

Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.

Finish
Kynar 500 (Fluoropolymer PVDF Coating)

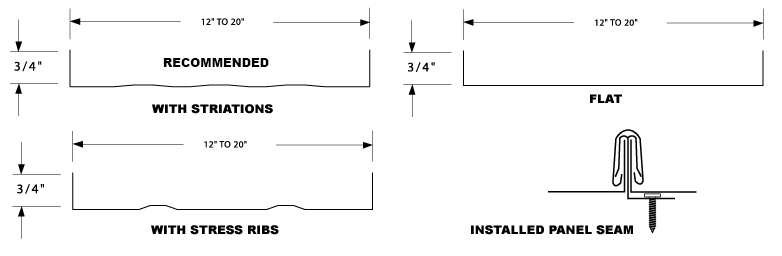

Tee Panel profiles

Finish Warranties

40-Year Limited COOLR “Paint” Warranty-AZ50 Galvalume®, G90 Galvanized, or Aluminum (PDF)

Coastal Finish Warranty (PDF)

Material Warranty

Galvalume Substrate Warranty (PDF)

Galvalume Plus Substrate Warranty (PDF)

Aluminum Substrate Warranty (PDF)

Panel Performance
UL 580 Class 90 (Uplift),
UL 790 (Class A Fire Rating)
UL 2218 (Impact Resistant)

ASTM 1592 (Uplift) Aluminum, Galvalume

Can be engineered to current ASCE 7 design standard

Energy Star

All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …

LEED

Our product can qualify for the following LEED Credits

SS Credit 7.2 Heat Island Effect: Roof

MR Credit 4.1 Recycled Content

MR Credit 5.1 Regional Materials

Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
