MRS 1000 – 1.5” Snap Lock
SNAP LOCK
The System 1000 metal roof panel is a snap-lock architectural metal roof system anchored with concealed clips. The snap-lock design allows for installation efficiency and weathertight protection. This narrow standing seam metal roof panel can be notched and bent to provide a smooth transition from roof to fascia or mansard.
Available Materials
Galvalume (22, 24, 26 gauge)
Aluminum (.032, .040)
Copper (16 & 20 oz)

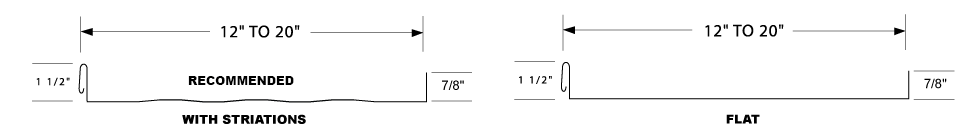

Available Widths
12” – 20”
Panel Options
Striations (Recommended)
Stiffening Ribs
Flat
Substrate Requirements
Can be installed over Solid Substrate
Minimum Roof Pitch
3:12
Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.
Finish
Kynar 500 (Fluoropolymer PVDF Coating)
Panel Performance
UL 580 Class 90 (Uplift)
ASTM 1592 (Uplift) Aluminum, Galvalume
Can be engineered to current ASCE 7 design standard
Energy Star
All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …
LEED
Our product can qualify for the following LEED Credits
- SS Credit 7.2 Heat Island Effect: Roof
- MR Credit 4.1 Recycled Content
- MR Credit 5.1 Regional Materials
Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
