MRS 3500

s3500 Burgundy

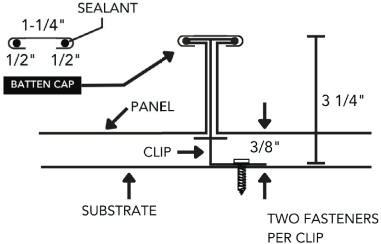

s3500 profile

Ideal for low slope applications
Mechanically seamed
Can be formed using 22/24 gauge steel, .032/.040 aluminum, copper
Radius and tapered profile less available
UL 580 Rated, Class 90 Rated
ASTM 1592, 1646, 1680, and 2140 tested
Can be applied over solid substrate or open framing
Single panel can be removed or replaced without damage to adjacent panel

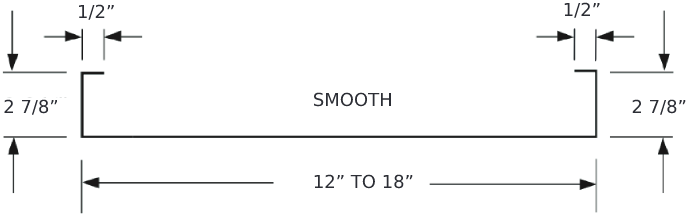

s3500 profile

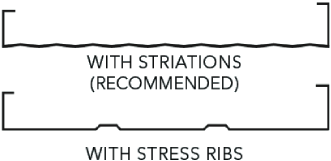

s3500 profile

s3500 profile

Weathertight Warranties

20 Year NDL Weathertight Warranty (PDF)

Standard 20 Year Weathertight Warranty (PDF)

Finish Warranties

40-Year Limited COOLR “Paint” Warranty-AZ50 Galvalume®, G90 Galvanized, or Aluminum (PDF)

Coastal Finish Warranty (PDF)

Material Warranty

Galvalume Substrate Warranty (PDF)

Galvalume Plus Substrate Warranty (PDF)

Aluminum Substrate Warranty (PDF)

Panel Performance
UL 580 Class 90 (Uplift),
UL 790 (Class A Fire Rating)
UL 2218 (Impact Resistant)

ASTM 1592 (Uplift) Aluminum, Galvalume
ASTM 1646 (Water Penetration)
ASTM 1680 (Air Infiltration)
ASTM 2140 (Static Water Penetration)

Can be engineered to current ASCE 7 design standard

Energy Star

All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …

LEED

Our product can qualify for the following LEED Credits

SS Credit 7.2 Heat Island Effect: Roof

MR Credit 4.1 Recycled Content

MR Credit 5.1 Regional Materials

Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
