MRS 1000 – 1.5” (22g, 24g, and 26g)
ASTM E1592 Tested
The MRS System 1000 Ideal for residential applications.
Available Materials
- .032 Aluminum, 22 or 24 ga Galvalume, 16 oz. copper 12″ to 20″ o.c.
- .032 Aluminum, 22 or 24 gauge Steel, 16 oz. Copper
12″ to 20″ o.c. - 24 gauge Galvalume
Features:

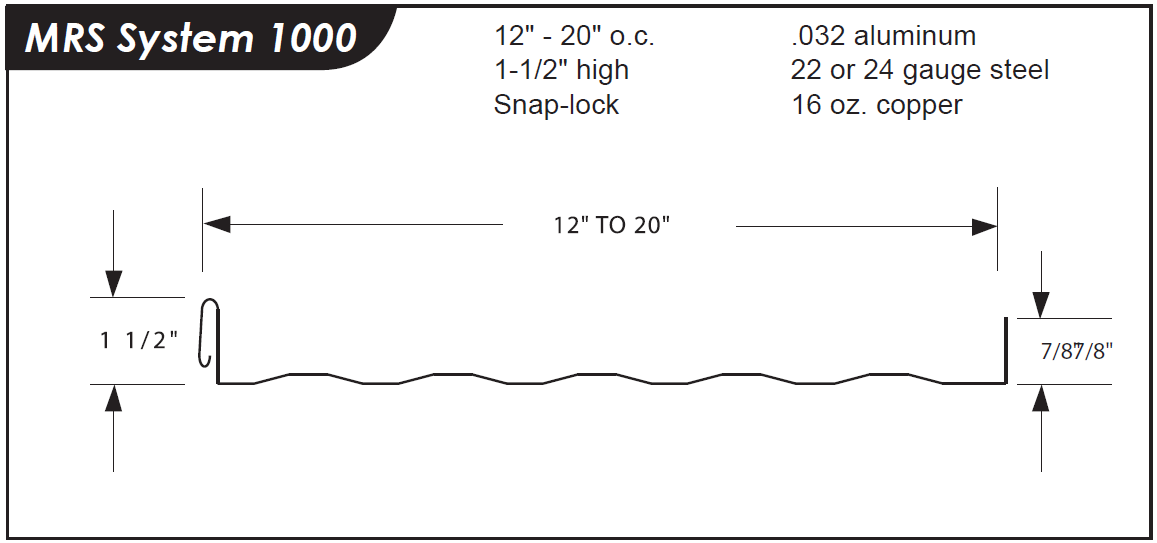

- Striations (Recommended)

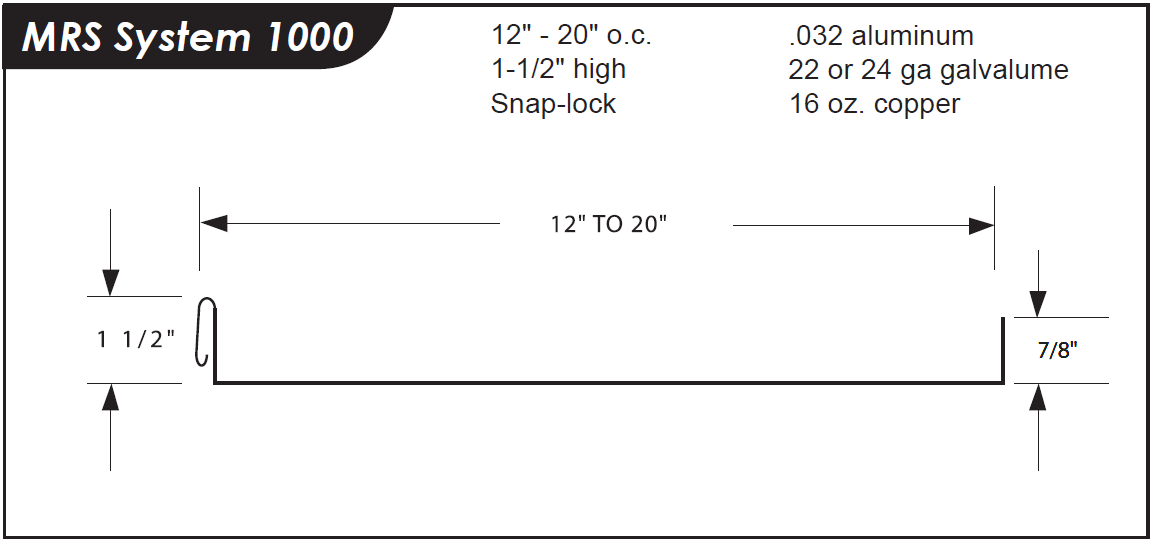

- Flat

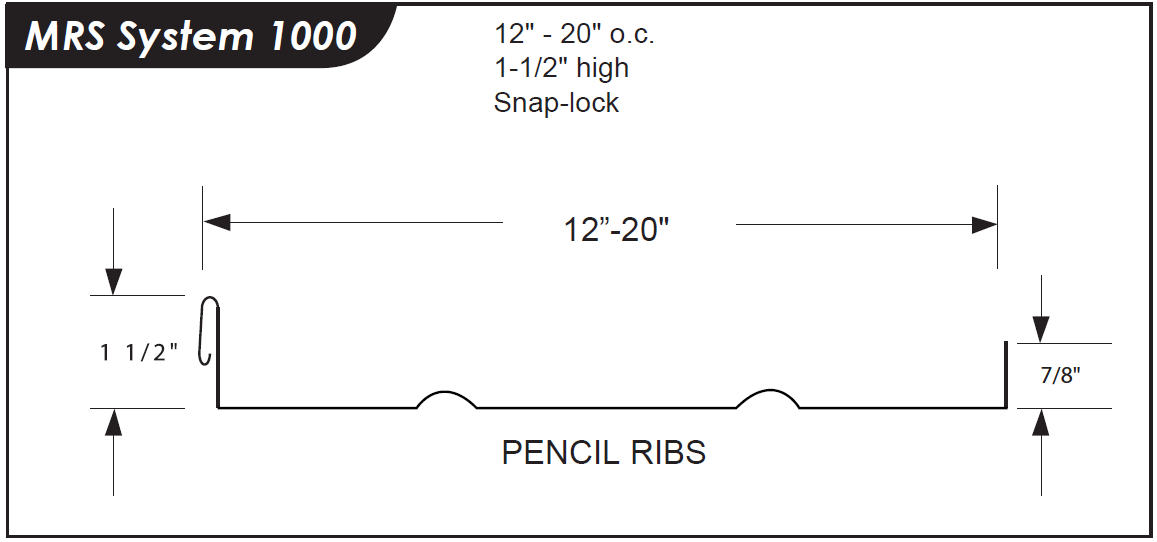

- Stress Ribs
Requirements
- Solid Substrate
- Ice & Water Shield or Synthetic Underlayment
- Minimum Roof Pitch: 3” on 12”
Finish
Hylar 5000® or Kynar 500®
Panel Performance
ASTM E1592 Tested
Solid Substrate
Ice & Water Shield or Synthetic Underlayment
Minimum Roof Pitch: 3” on 12”
